Product Features

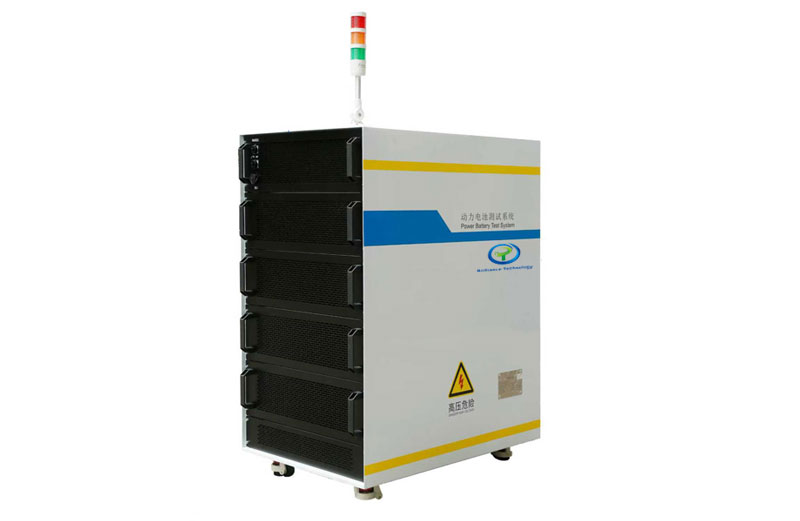

| Item no. | BT1000V200AC2-T | ||
| Specification | 1000V/200A | ||
| Quantity of Channels | 2 channels | ||
| Control mode | Independent Control each channel，current and voltage will be gathered collect by four wire | ||
| Specialty of Channels | Discharge energy feed back to power grid,any neighbouring channels can be paralleled | ||
| Voltage | Range | Charge | 0V~1000V （Equipment port） |
| Discharge | 30V~1000V （Equipment port） | ||
| Accuracy class | ± 0.05%FS，(Temperature 15℃~35℃) | ||
| Resolution ratio | 16bit,0.0033%FS | ||
| Current | Range | Charge | 0~200A |
| Discharge | 0~200A | ||
| Accuracy class | ±（0.05%FS +0.05%RD）(Temperature15℃~35℃) | ||
| Stability | ≦0.5%FS | ||
| Resolution ratio | 16bit,0.0033%FS | ||
| Power rate of work | Power of each channel | 200KW， Power of two channels:400KW | |
| Stalility | 1% | ||
| Time | Range | ≤365*24hours/work steps | |
| Resolution ratio | 10ms | ||
| Accuracy class | 1s/H | ||
| Data record | Mini | 10ms | |
| Record mode | Time difference：0.01~ 9999S | ||
| Current difference：0.05%FS~100%FS | |||
| Voltage difference：0.05%FS~100%FS | |||
| Capacity difference：1mAh~10Ah | |||
| Work mode | Constant current charge | Voltage、Time、Capacity、Temperature、Negative slope | |
| Constant voltage charge | Voltage、Time、Capacity、Temperature | ||
| Constant power charge | Voltage、Time、Capacity、Temperature | ||
| Constant resistance charge | Voltage、Time、Capacity、Temperature | ||
| Current Ramp charge | Ramp cut-off value 、step times | ||
| Power Ramp charge | Ramp cut-off value、 step times | ||
| static | Voltage ,Time | ||
| Constant Current discharge | Voltage、Time、Capacity、Temperature | ||
| Constant voltage discharge | Voltage、Time、Capacity、Temperature | ||
| Constant power discharge | Voltage、Time、Capacity、Temperature | ||
| Constant resistance discharge | Voltage、Time、Capacity、Temperature | ||
| Current Ramp discharge | Ramp cut-off value、step times | ||
| Power Ramp discharge | Ramp cut-off value、step times | ||
| cycle | Cycle times | 100000 | |
| Programmable step | 255 | ||
| Circulation loop | Support circulation loop ,max plies: 30plies， | ||
| Protection | Software protection | Support data protection when power off | |
| Support using offline | |||
| Support continuation of the restart. | |||
| Support over voltage ,under voltage,capacity,over current,under current,temperature protection. | |||
| Data mode | Excel、CSV、TXT、BMP | ||
| Range of Work temperature | Temperature 5℃~35℃ humidity 10%~90% | ||
| Temperature of storage | 0℃-45℃ | ||
| Cooling mode | Air cooling | ||
| Noise of Equipment | ≤75dB | ||
| Efficiency of Equipment energy feel back | ≥94% | ||
| PFC | ≥0.98 | ||
| THD | ≤5% | ||
| Max Input power | 400KW | ||
| Size（L*W*H mm） | 2400*1050*2050(MM) | ||
| Weight Kg | 3.2T | ||
| Communication mode | TCP/IP | ||
| System and computer requirement | Computer：CPU 2.7GHz，memory card 4GB ，hardware 500GB，MicrosoftTM WinXP 、Win7,Win10 ，MicrosoftTM Office2007。 | ||
| Remark: | Each channel provides a CAN communication | ||
