Product Features

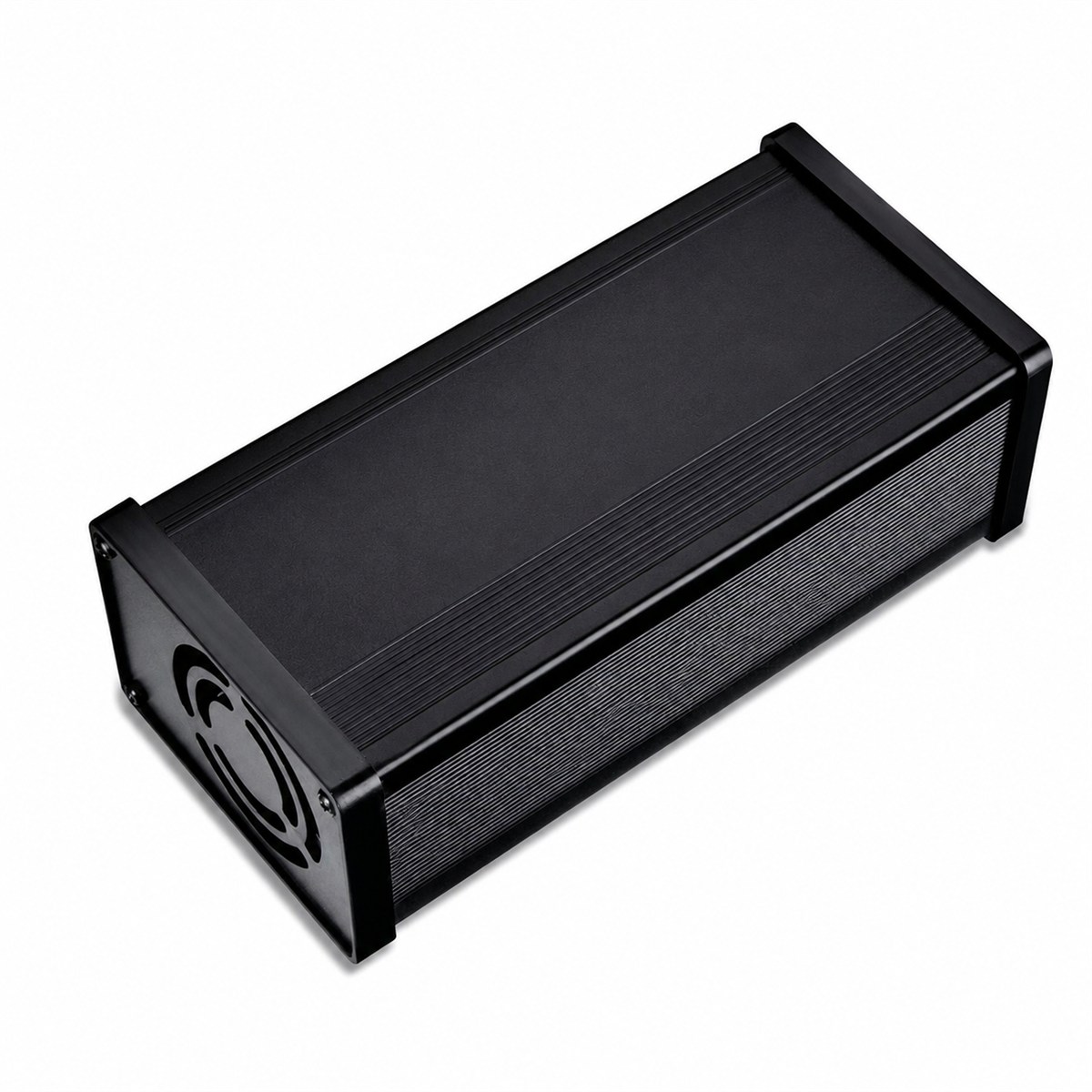

800W IP20 Battery Charger Features
The 800W IP20 battery charger provides configurable 12–103V DC output with a maximum current of 20A for lithium battery systems. Its universal 90–264VAC input, PFC technology and optional CAN communication support efficient indoor charging and BMS integration.
- Wide AC input range of 90-264 VAC, 50/60 Hz
- IP20 enclosure protection for safe indoor charging applications
- Power factor of at least 0.98 with PFC technology
- Supports 12V, 24V, 36V, 48V, 60V and 72V battery platforms
- Output voltage range from 12V to 103V, depending on configuration
- Maximum output current up to 20A
- Optional CAN communication and standard LED charging indication
- Operating temperature range from -30°C to 60°C
