100V 100A Battery Pack Testing System Features

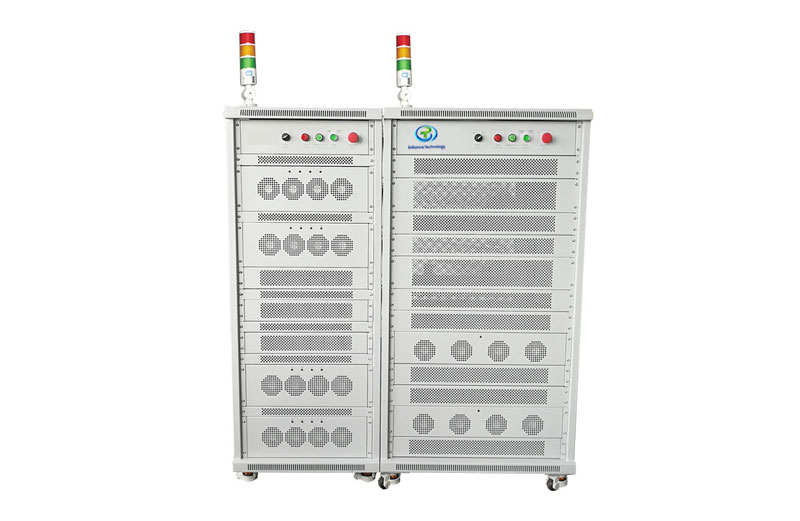

The 100V 100A battery pack testing system provides eight independent 10kW regenerative channels for lithium battery module and pack evaluation. It supports capacity verification, charge-discharge cycling, programmable test profiles, four-wire measurement and adjacent-channel paralleling.
- Eight Independent Channels: Up to 100V, 100A and 10kW per channel, with four-wire measurement.
- Flexible Operating Range: Charging from 0–100V and discharging from 5–100V at the equipment terminals.
- Regenerative Energy Feedback: Returns discharge energy to the grid; adjacent channels support paralleling.
- Multiple Test Modes: Constant-current, constant-voltage, constant-power, constant-resistance and current/power ramp testing.
- Programmable Cycling: Up to 128 steps and 30,000 cycles, with configurable test termination conditions.
- Data and Protection: Excel/CSV/TXT export, power-failure data protection, and voltage, current, capacity, temperature and reverse-polarity protection.
