Product Features

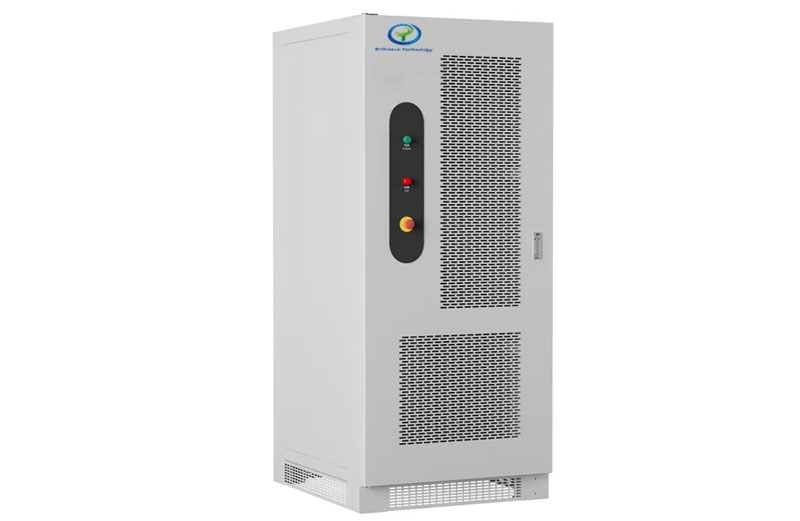

| Item no. | BT60V100AC8-T | ||
| Specification | 60V/100A | ||
| Quantity of Channels | 8 channels | ||
| Control mode | Independent Control each channel，current and voltage will be gathered collect by four wire. | ||
| Specialty of Channels | Discharge energy feed back to power grid,any neighbouring channels can be paralleled | ||
| Voltage | Range | Charge | 0V~60V （Equipment port） |
| Discharge | 5V~60V （Equipment port） | ||
| Accuracy class | ± 0.05%FS，(Temperature 15℃~35℃) | ||
| Resolution ratio | 16bit,0.0033%FS | ||
| Current | Range | Charge | 100mA~100A |
| Discharge | 100mA~100A | ||
| Accuracy class | ±（0.05%FS +0.05%RD）(Temperature15℃~35℃) | ||
| Stability | ≦0.5%FS | ||
| Resolution ratio | 16bit,0.0033%FS | ||
| Power rate of work | Power of each channel | 6000W | |
| Stalility | 1% | ||
| Time | Range | 1s | |
| Resolution ratio | 1s/H | ||
| Accuracy class | 1s | ||
| Data record | Mini | 1s | |
| Record mode | Time difference：0.01~ 9999S | ||
| Current difference：0.05%FS~100%FS | |||
| Voltage difference：0.05%FS~100%FS | |||
| Work mode | Constant current charge | Voltage、Time、Capacity、Temperature、Negative slope | |
| Constant voltage charge | Voltage、Time、Capacity、Temperature | ||
| Constant power charge | Voltage、Time、Capacity、Temperature | ||
| Constant resistance charge | Voltage、Time、Capacity、Temperature | ||
| Current Ramp charge | Ramp cut-off value 、step times | ||
| Power Ramp charge | Ramp cut-off value、 step times | ||
| static | Voltage ,Time | ||
| Constant Current discharge | Voltage、Time、Capacity、Temperature | ||
| Constant voltage discharge | Voltage、Time、Capacity、Temperature | ||
| Constant power discharge | Voltage、Time、Capacity、Temperature | ||
| Constant resistance discharge | Voltage、Time、Capacity、Temperature | ||
| Current Ramp discharge | Ramp cut-off value、step times | ||
| Power Ramp discharge | Ramp cut-off value、step times | ||
| cycle | Cycle times | 30000 | |
| Programmable step | 128 | ||
| Circulation loop | Support circulation loop ,max plies: 30plies， | ||
| Protection | Software protection | Support data protection when power off | |
| Support using offline | |||
| Support continuation of the restart. | |||
| Support over voltage ,under voltage,capacity,over current,under current,temperature protection. | |||
| Data mode | Excel、CSV、TXT、BMP | ||
| Range of Work temperature | Temperature 5℃~35℃ humidity 10%~90% | ||
| Temperature of storage | 0℃-40℃ | ||
| Cooling mode | Air cooling | ||
| Noise of Equipment | ≤65dB | ||
| Efficiency of Equipment | Charge：When full work ≥80%；（Equipment port） Discharge：power feed back，Full work ≥75%（Equipment port） |
||
| PFC | ≥0.98 | ||
| THD | ≤5% | ||
| Max Input power | 48KW | ||
| Size（L*W*H mm） | 800*800*1561(MM) | ||
| Weight Kg | 250kg | ||
| Output Cables’ Length | 3meters | ||
| Emergency Button | With Emergency Button | ||
| Communication mode | TCP/IP，CAN | ||
| System and computer requirement | Computer：CPU 2.7GHz，memory card 4GB ，hardware 500GB，MicrosoftTM WinXP 、Win7,Win10 ，MicrosoftTM Office2007。 | ||
