Product Features

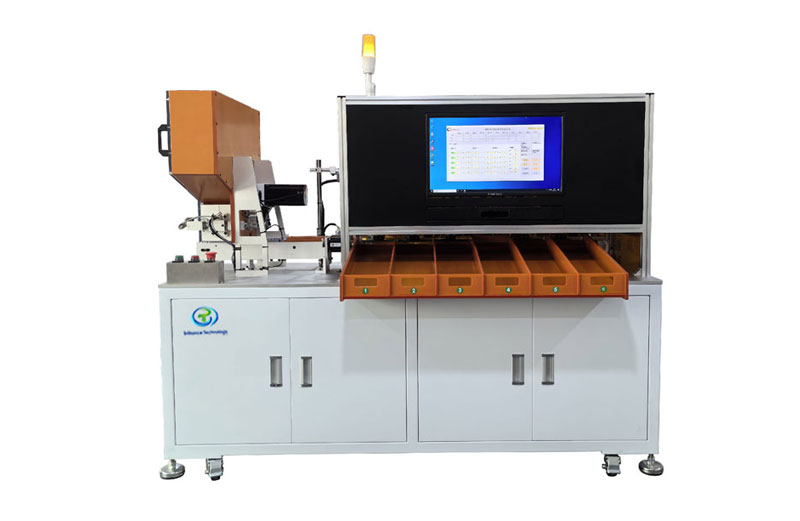

6-speed universal sorting machine is a test sorting equipment for the internal resistance and voltage of cylindrical batteries, with high-precision internal resistance, voltage automatic test system, the equipment is based on the internal resistance set on the man-machine interface software, the voltage value is accurately sent to the battery into the specified gear, the system can achieve up to 6 gears (5 points of selection, 1 NG gear) sorting. This equipment can test about 3000 matching cells per hour, and the structure design is simple and generous, and the performance is stable. One of the most cost-effective sorting devices on the market to date.
| Technical parameters of the equipment | ||
| Working voltage | single-phase AC220V±5%/50Hz, power: P≤500W | |
| Working air source | 0.4 ~ 0.6Mpa | |
| Adapt to battery specifications | 32140/33138/33140/40135 | |
| Sorting efficiency | ≥ 45PPM | |
| Equipment weight | about 250kg | |
| Dimensions | 1790 (L) × 850 (W) × 1450 (H) mm | |
| Sorting machine frame material | high-quality thick cold rolled plate production. | |
| Electronic control devices | PLC, stepper motor control, brand sensors and other accessories. | |
| Instrument | HMI | |
| Total current distortion rate | Precision voltage internal resistance tester HK3561 | |
| Open circuit voltage | accuracy +/- 0. 10% rdg, display resolution 0.1 millivolts | |
| Sorting parameters | open circuit voltage, AC internal resistance | |
| AC internal resistance | accuracy +/- 0.5% rdg, display resolution 0.01 mOhmTechnical parameters of the equipment | |
