Product Features
|
Product Model Code：BT5V3AC512-F |
||

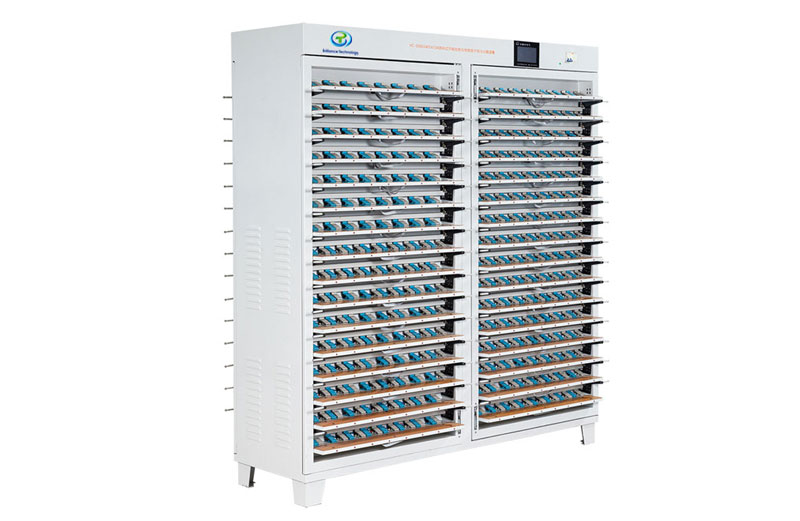

| Product specifications | 5V3AC512-F battery charging and discharging machine with regenerative power | |
| Channel voltage and current |
5V/3A |
|
| Channel number |
512 Channnels |
|
| Parallel unit number per channel |
1 |
|
| Input AC type |
3 phase AC415V ±10%/50Hz |
|
| Maximum input power |
12KW |
|
| Noise |
≤65dB |
|
| AC power supply wiring mode |
Three-phase five wire connection |
|
| The power factor of power supply |
≥0.99(The load power is more than 30% of rated power) |
|
| Total current distortion rate |
THD≤5% |
|
| Conversion efficiency |
Each link conversion efficiency is more than 85% |
|
| Volatge | Constant voltage setting range | Charging：0.02V~5V |
| Minimum discharge voltage | Discharging：1V~5V | |
| Measuring range | 0V~5V | |
| The voltage resolution | 0.1mV | |
Equipment Working Environment Requirements:
| Indicators project | Index Parameters |
| Temperature | Working temperature range -10℃~40℃ |
| Storage temperature range-20℃~60℃ | |
| Humidity | Work environment relative humidity≦80% |
| Storage environment relative humidity≦85% |
