Product Features
| Product Model Code：BT5V10AC512-F | ||
|
Product specifications |

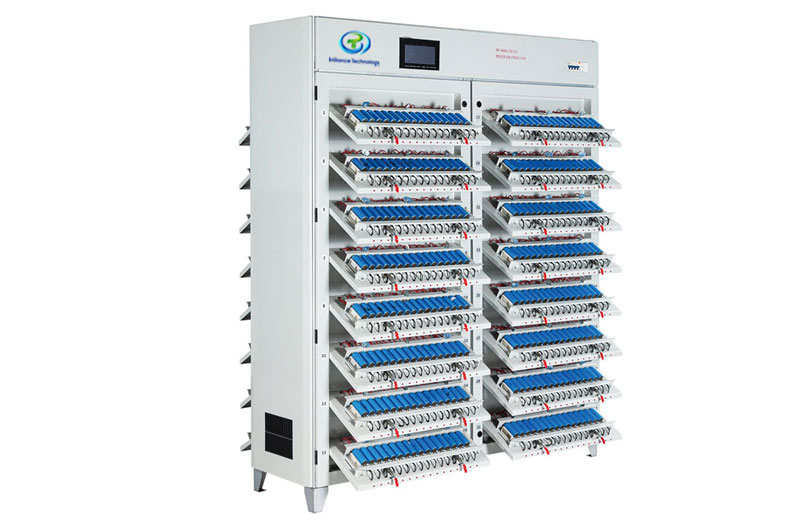

5V10AC512-F battery charging and discharging machine with regenerative power | |
| Channel voltage and current | 5V/10A | |
| Channel number | 512 Channnels | |
| Parallel unit number per channel | 1 | |
| Input AC type | 3 phase AC415V ±10%/50Hz | |
| Maximum input power | 18KW | |
| Noise | ≤65dB | |
| AC power supply wiring mode | Three-phase five wire connection | |
| The power factor of power supply | ≥0.99(The load power is more than 30% of rated power) | |
| Total current distortion rate | THD≤5% | |
| Conversion efficiency | Each link conversion efficiency is more than 85% | |
| Volatge | Constant voltage setting range | Charging0.02V~5V |
| Minimum discharge voltage | Discharging1V~5V | |
| Measuring range | 0V~5V | |
| The voltage resolution | 0.1mV | |
